How to Fix a Broken HDMI Port on Xbox One: DIY Techniques

Introduction

Dealing with a broken HDMI port on your Xbox One can be frustrating. The HDMI port is essential for connecting your console to your TV or monitor, and without it, gaming becomes impossible. So, how to fix a broken HDMI port on Xbox One? Fortunately, there are several DIY techniques you can employ to troubleshoot and potentially repair the issue. Whether you are looking for simple fixes or are prepared to delve into more complex repair procedures, this guide will provide you with the steps needed to get your console back in working order.

Understanding the HDMI Port and Its Importance

What is an HDMI Port?

HDMI, or High-Definition Multimedia Interface, serves as the connection point for high-definition video and audio signals between your Xbox One and display devices. The HDMI port is designed to transmit a combination of video and audio to enhance your gaming experience.

Why Does the HDMI Port Fail?

Several factors could lead to the malfunction of the HDMI port, including:

1. Physical Damage:
   • Frequent plugging and unplugging of devices can cause significant wear and tear on the port.
   • Repeated mechanical stress may lead to loose connections or even physical breakage of the port.
   • The materials used in the port, such as plastic or metal, can degrade over time, compromising the integrity of the connection.
2. Dust and Debris:
   • Over time, dust and small particles can accumulate in the port, creating a barrier that obstructs the connection.
   • This buildup can interfere with the conductivity necessary for the device to function properly.
   • Regular cleaning and maintenance are required to prevent dust accumulation and ensure optimal performance of the port.
3. Electrical Short:
   • An electrical surge, which can be caused by power spikes or faulty equipment, may lead to damage in the port.
   • Such surges can disrupt the normal electrical flow, rendering the port non-functional or causing intermittent issues.
   • Protecting the port with surge protectors or using devices with built-in surge protection can help mitigate this risk.

Recognizing these factors is vital for effective troubleshooting.

Initial Troubleshooting Steps

How to fix a broken hdmi port on xbox one? Before attempting any fixes on the HDMI port, it’s important to perform a few preliminary troubleshooting steps. These actions can help you determine whether the issue lies with the port or the cables.

1. Check the Cable

Start by inspecting the HDMI cable itself. Examine it for any signs of fraying, kinks, or damage. Testing with a different HDMI cable can also reveal whether the problem is related to the cable or the HDMI port.

2. Inspect Other Devices

If possible, connect your Xbox One to a different TV or monitor. If the console works with another display, the issue may not reside within the HDMI port at all. Instead, the problem could be with the original display device.

3. Restart the Console

Sometimes, a simple restart can fix minor glitches. Turn off your Xbox One completely, unplug it from the power source, wait for a minute, and then reconnect it.

DIY Techniques for Fixing the HDMI Port

How to fix a broken hdmi port on xbox one? If the preliminary troubleshooting leads you to believe that the HDMI port itself is the culprit, several DIY techniques can help.

1. Cleaning the HDMI Port

A dirty port can hinder a proper connection. Follow these steps to clean the HDMI port:

Gather Materials

1. Compressed Air:
   • Obtain a can of compressed air, which is specifically designed for cleaning electronic devices.
   • This product propels air at a high velocity, making it effective for dislodging dust and debris without physically touching sensitive components.
2. Soft Toothbrush or Cotton Swab:
   • Choose a clean, soft-bristled toothbrush. The soft bristles will help remove dirt without scratching surfaces.
   • Alternatively, a cotton swab is also effective for reaching smaller areas and cleaning delicate components.
   • Ensure that whatever you use is clean and free from any products that could leave residues, such as lotion or oils.

Blow Out Dust

1. Preparation:
   • Before using the compressed air, turn off the device and unplug it from the power source. This ensures safety and prevents any accidental damage while cleaning.
   • Hold the device in a stable position or on its side for better access to the HDMI port.
2. Using Compressed Air:
   • With the can of compressed air, hold it upright and aim the nozzle at the HDMI port.
   • Press the trigger to release short bursts of air. Start with a light burst to see how the dust responds.
3. Careful Technique:
   • Make sure to blow out any dust or debris gently. Avoid excessive force, as this could push debris further into the port instead of removing it.
   • Be cautious not to insert the nozzle of the air can into the port, as this can lead to potential damage to the internal connectors.

Wipe It Down

1. Using the Toothbrush or Cotton Swab:
   • After using the compressed air, take the soft toothbrush or cotton swab to gently clean around the edges of the HDMI port.
   • If using a toothbrush, make sure to lightly brush around the perimeter to remove any remaining dust that may not have been blown out.
2. Gentle Touch:
   • Be extra cautious to avoid applying too much pressure while cleaning. A gentle touch is essential to prevent damaging sensitive internal components.
   • Ensure that the bristles of the toothbrush or the swab do not poke into the HDMI port itself, as this could cause harm.
3. Final Check:
   • After wiping down the edges, visually inspect the HDMI port for any remaining dust or debris. If needed, repeat the process using compressed air again.
   • Properly disposing of any collected dust and ensuring the area around the cleaning station is tidy is recommended.

2. Assessing the HDMI Port for Damage

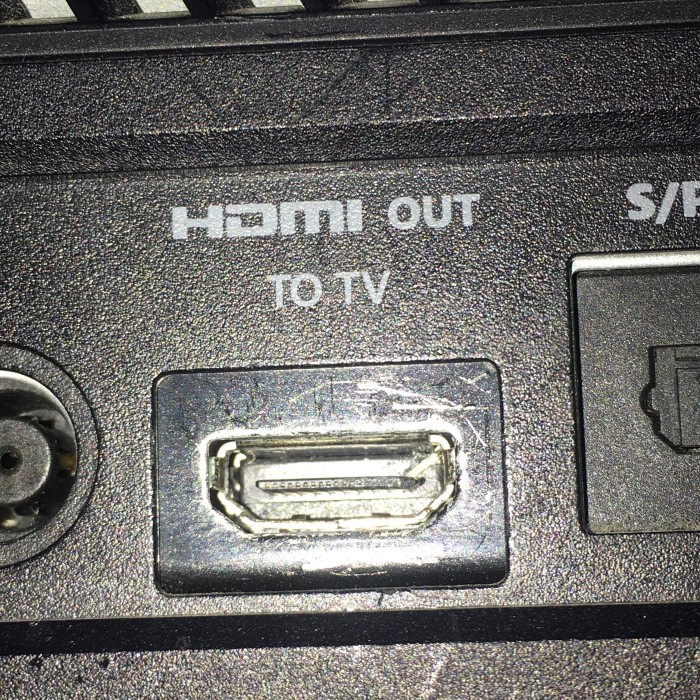

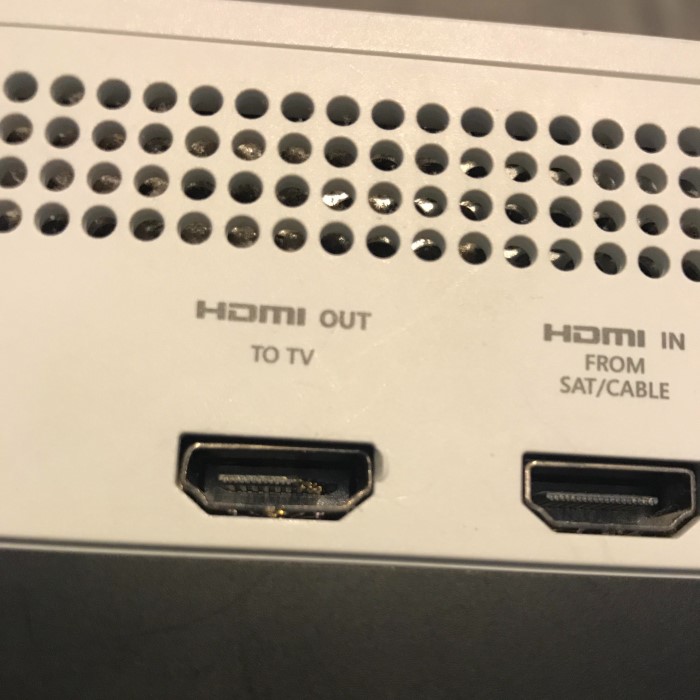

After cleaning, take a close look at the HDMI port. Look for any bent or broken pins inside the port itself.

• Visual Inspection: Use a flashlight to inspect the interior. If pins appear bent but intact, you can use a small tool (like a plastic spudger) to gently realign them.
• Avoid Using Metal Tools: Be cautious not to use metal objects, which could cause a short.

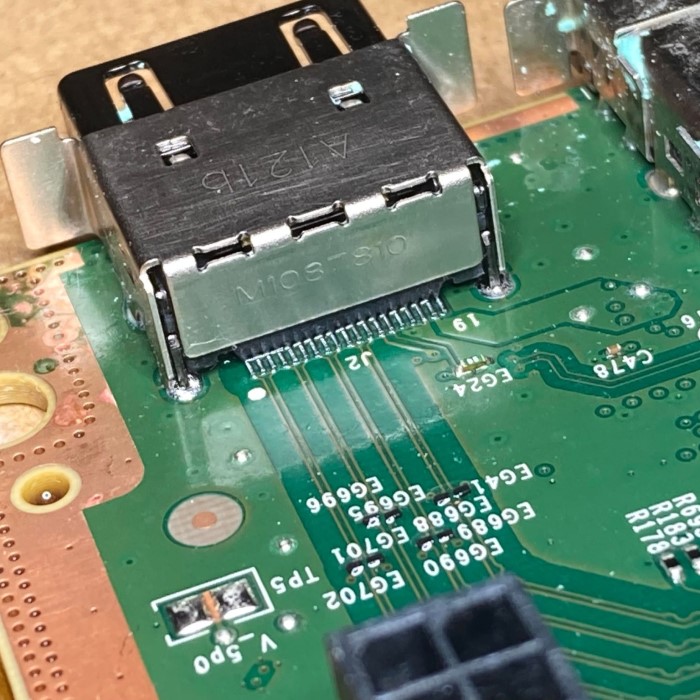

3. Resoldering the HDMI Port

If you’re comfortable with electronics, you might consider resoldering the HDMI port. This process requires some skill and the right tools, so only proceed if you’re confident in your abilities.

• What You Will Need: A soldering iron, solder, and a steady hand.
• Process: Open the console casing, and carefully unscrew the HDMI port from the motherboard. After that, reattach it by soldering it back on.

Caution: This step can void warranties and should only be attempted if you have prior experience with soldering electronics.

When to Seek Professional Help

While various DIY techniques can fix minor issues, there may be circumstances where seeking professional help is the best option.

1. Persistent Issues

If none of the above methods work, professional repair may be necessary. A technician can provide insights and diagnostic tools that allow for a more thorough examination of the issue.

2. Warranty Coverage

When your Xbox One is under warranty, reaching out to Microsoft or an authorized repair shop is advisable. Attempting repairs may void the warranty, so consider this before making any changes.

Cost Considerations

1. DIY Costs

If you opt for a DIY approach, costs may be minimal. You may only need to buy cleaning supplies or components (like a soldering kit) if you don’t already have them.

• Example Costs:
  • Compressed air: $10
  • Soldering iron: $20-30
  • Miscellaneous tools: $10-15

2. Professional Repair Costs

If you choose to go to a repair shop, the costs can vary. Repairing an HDMI port at a professional shop typically ranges from $50to$150.

• Factors Influencing Cost:
  • Type of repair needed
  • Location of the repair shop
  • Warranty status of the console

FAQ Section

Can you fix an HDMI port on an Xbox?

Yes, in many cases, you can fix a broken HDMI port on an Xbox One using DIY techniques, including cleaning and realigning the port.

How much does it cost to fix a broken HDMI port on Xbox One?

The cost for professional repairs typically ranges from $50to$150, depending on the complexity of the issue and the repair shop’s rates.

Can a HDMI port be repaired?

Yes, HDMI ports can often be repaired. Cleaning, resoldering, or professional replacement are potential solutions.

Can I use my Xbox without a HDMI port?

Using an Xbox without an HDMI port is not feasible for video output. However, alternative connections like component cables may be available for other Xbox models, but these do not universally apply to Xbox One.

Conclusion

How to fix a broken hdmi port on xbox one? Fixing a broken HDMI port on your Xbox One can be frustrating, but with the right knowledge and techniques, you can often resolve the issue yourself. By following the troubleshooting steps and DIY methods discussed in this guide, you may find success in restoring connectivity to your console. Whether you choose to handle the repair yourself or seek professional help, understanding the potential issues and solutions is the first step toward getting back to your gaming adventures. Remember, if problems persist, do not hesitate to reach out to professionals for assistance.
